AQUAFORCE AQ-AERO1354-F116Q3 Water Aeration System

Water Aeration System AQUAFORCE AQ-AERO1354-F116Q3

AQUAFORCE AQ-AERO1354-F116Q3 is a high-power professional automated pressure aeration system designed for efficient removal of iron, manganese, and hydrogen sulfide.

How It Works

1. Column No. 1 (Aeration and Degassing): Water is mixed with air to oxidize iron and strip away gases. Excess air and gases are automatically vented through the release valve.
2. Column No. 2 (Filtration): Water passes through the catalytic media where iron is trapped. Large 1354 columns ensure high performance and stability.
3. Backwash (Self-Cleaning): When it's time to rinse (by volume or timer), the system automatically flushes accumulated particles into the drain using reverse flow.

Application

Designed for large estates, hotels, and commercial facilities. It comfortably supplies clean water to 4-5 simultaneous taps.

Kit Components

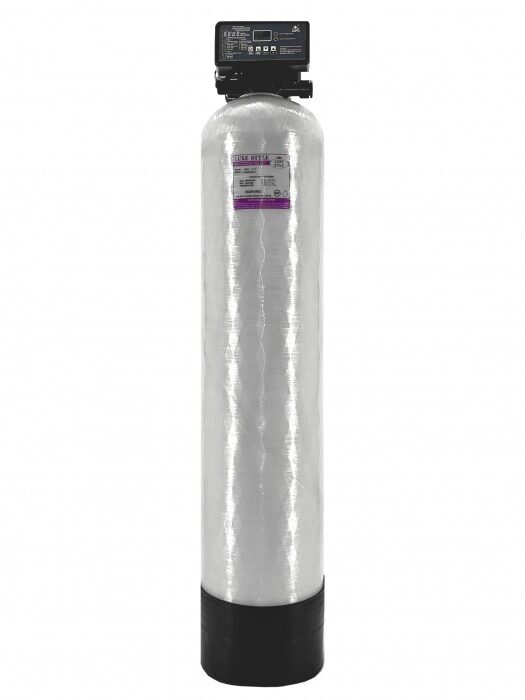

• Two filter housings 1354: High-strength composite columns.
• Control Valve Runxin F116Q3 (1"): Intelligent controller with a 1-inch port.
• Pulse Meter (3/4"): For precise tracking of the system’s capacity.
• Powerful AS19 Compressor: High-performance model that ensures effective oxidation without limiting your pump's flow rate.
• Air and Gas Release Valve: Automatically removes waste gases and excess air.
• Compressor Control Relay: Programmable operation during water usage.
• Filter Media: Birm (Made in USA) — 53 liters, plus 10 liters of quartz sand and gravel support bed.

Our Advantages (Why AQUAFORCE?)

• Smart Resource Management: Backwash settings based on both days and volume save water and power while significantly extending the life of the media.
• Unrestricted Power: Our more powerful compressor allows your pump to work at full capacity, ensuring maximum flow.
• Eco-Friendly: Chemical-free purification using only atmospheric oxygen.

Technical Specifications

• Flow Rate: up to 2.5 - 3.0 m3/h.
• Filter Media: Birm (manufactured in USA).
• Media Volume: 53 L (catalytic) + 10 L (support bed).
• Minimum Inlet Pressure: 2.2 bar.
• Column Size: 1354 (diameter 33 cm, height 139 cm).
