AQUAPHOR PROFESSIONAL APRO-3000-D-Black Reverse Osmosis Systems

Aquaphor Professional APRO-3000-D-black (Black Casing)

 High-Performance Commercial Reverse Osmosis System

The Aquaphor Professional APRO-3000-D-black is a powerful commercial reverse osmosis system designed for effective water purification on an industrial scale. Equipped with highly efficient XLP-8040 membranes, it provides a continuous flow of perfectly pure water at a rate of up to 3000 liters per hour. This system is a reliable and energy-efficient solution for large enterprises, production lines, and facilities with high water consumption, where both purification quality and cost-effectiveness are crucial.

Key Features and Advantages

• Exceptional Performance: The system can purify up to 3000 liters of water per hour, making it one of the most powerful in its class. This ensures an uninterrupted supply of pure water even during peak loads required for continuous production processes.
• Energy Efficiency: By using three XLP-8040 membranes that operate at extra-low pressure, the system consumes significantly less energy compared to traditional high-pressure units, allowing for a substantial reduction in operating costs.
• Maximum Purification: The multi-stage filtration system removes up to 95% of all contaminants, including hardness salts, heavy metals, organic compounds, bacteria, and viruses.
• Multi-Stage Purification System:
  • Pre-filtration: The incoming water first passes through two mechanical filters with a 5-micron rating, which effectively trap sand, rust, and other mechanical impurities, protecting the reverse osmosis membranes and extending their lifespan.

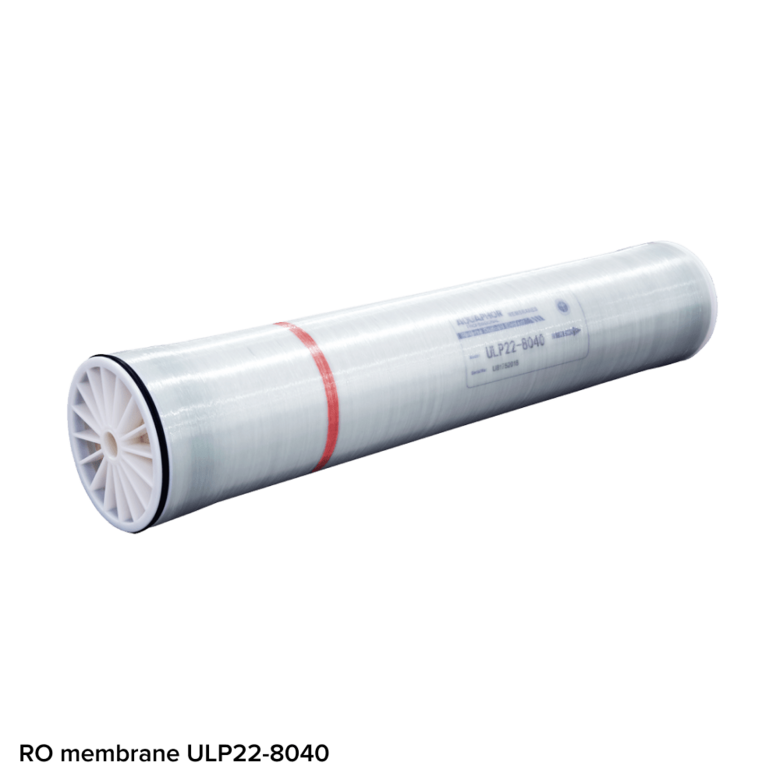

  • Reverse Osmosis: The water then passes under pressure through three high-performance XLP-8040 membranes, where the primary purification occurs, trapping most contaminants at a molecular level.
• Reliable Components: The system's construction uses high-quality components, ensuring exceptional durability and stable operation under harsh industrial conditions.
• Smart Control: The system is equipped with automatic flow regulation, hydraulic membrane flushing, and other features to ensure optimal and uninterrupted performance.

Technical Specifications

• Nominal Performance: up to 3000 L/hour
• Number of Membranes: 3, type XLP-8040
• Pre-filtration Cartridges: 2 cartridges, 5 microns each
• Working Pressure: 7-10 bar
• Maximum Salt Content: up to 2000 ppm
• Salt Rejection: up to 95%
• System Recovery: up to 98%
• Power Supply: 400 V, 50 Hz
• Dimensions (L × W × H): 3700 × 840 × 1160 mm
• Net Weight: 266 kg
• Connections (Inlet, Outlet, Drain): 2", 1", 1"

Requirements for Source Water

For the effective and long-lasting operation of the reverse osmosis system, the source water must meet certain parameters. Exceeding these values can reduce performance and shorten the lifespan of the filter elements and membranes.

• Temperature: 5-40 °C
• Inlet Pressure: 3-6 bar
• Mineralization (TDS): Up to 2000 mg/L
• Turbidity: Up to 1 NTU
• Hardness: Up to 5 mg-eq/L
• Total Iron Content: Up to 0.15 mg/L
• Free Chlorine: Up to 0.1 mg/L
• Permanganate Oxidizability (PO): Up to 1 mg O₂/L
• Hydrogen Index (pH): 6-11
