Aquaphor Crystal
AQUAPHOR Crystal is a high-performance, compact 3-stage drinking
water purification system designed for municipal tap water. Installed
neatly under your kitchen sink, it connects directly to a stylish
separate drinking water faucet.
This model is ideal for soft to moderately hard tap water where
limescale is not a primary issue. The system effectively targets a broad
spectrum of hazardous chemical and mechanical impurities while
retaining essential natural minerals.
KEY FEATURES:
• High Flow Rate: Delivers purified water at 2.5 L/min. Quickly fill
kettles, large pots, or carafes without waiting around.
• Extended Capacity up to 8000 Liters: Packed with a larger volume
of high-efficiency adsorbents, providing a longer service life than
standard inline filters.
• Innovative CarbFiber Block Technology: Combines finely powdered
coconut shell activated carbon with Aquaphor’s patented Aqualen™
ion-exchange microfibers to superiorly trap heavy metals and dangerous
pollutants.
• Hygienic & Easy Replacement (Push & Click): Modules are
swapped together with their housing at the push of a button, eliminating
direct hand contact with trapped dirt and bacteria.
• Sleek & Leak-Proof Design: The ultra-slim casing takes up
minimal under-sink space, while its durable construction easily handles
water pressure spikes.
FILTRATION STAGES & CARTRIDGE SPECS:

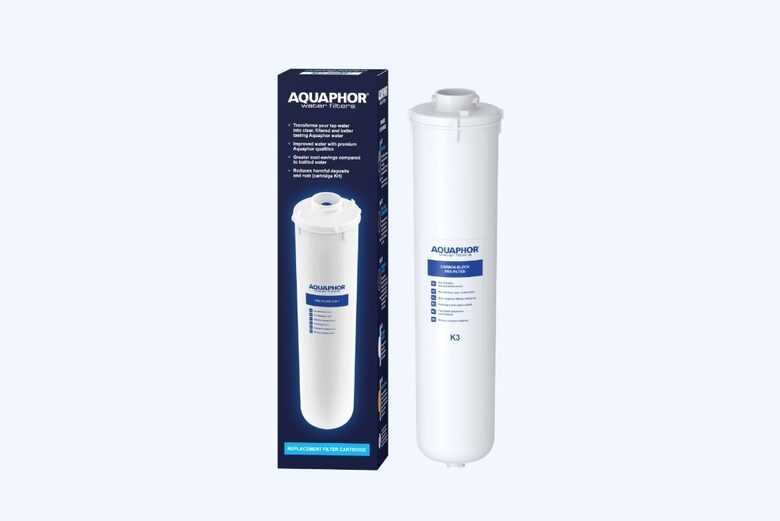

1. Module K3 (Primary Sorbative Purification): Built using
carbon-block technology enriched with Aqualen™ fibers. It traps
mechanical sediments (rust, sand, silt) down to 5 microns while reducing
active chlorine and heavy metals.
2. Module K2 (Deep Purification): Features a denser carbon structure
to remove micro-particles down to 3 microns. Effectively filters out
phenols, pesticides, organic compounds, and toxic pollutants.

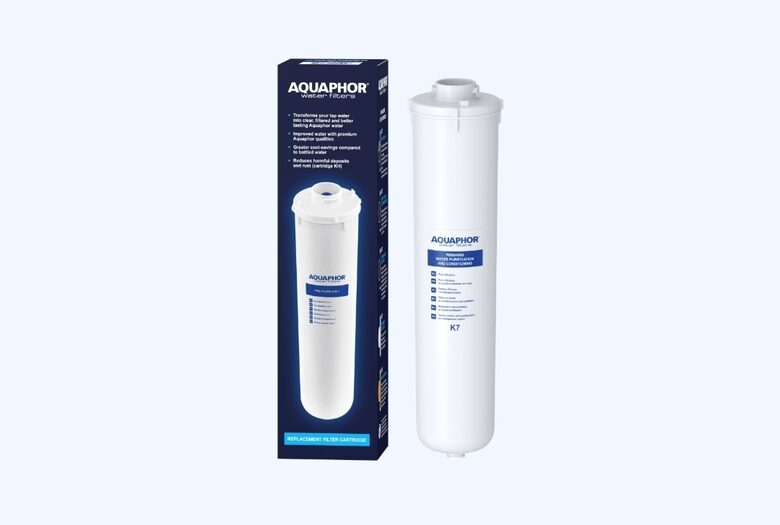

3. Module K7 (Final Polishing & Conditioning): An ultra-dense
carbon block cartridge that traps microscopic particles down to 0.8
microns, including microplastics and pharmaceutical residues. It
conditions the water, removing odors and ensuring a clear, crisp taste.
TECHNICAL SPECIFICATIONS:
• Recommended Flow Rate: 2.5 L/min
• Filter Capacity: Up to 8000 liters (or up to 12 months)
• Operating Pressure: 0.54 – 6.3 atm
• Water Temperature: +5°C to +38°C
• System Dimensions: 26.0 x 9.0 x 34.0 cm
• Application: Municipal tap water (for regions with low to medium hardness).
MAINTENANCE & CARTRIDGE REPLACEMENT:
• Complete Cartridge Set (K3, K2, K7): Replace all modules at least
once every 12 months or upon reaching the 8000-liter threshold.
• Emergency Replacement: In the event of city plumbing work or major
pipe flushes, early replacement of the first module (K3) may be
necessary.
* Note: If your water is very hard and causes heavy limescale within
days, we recommend opting for the Crystal HA model (with softening) or a
Reverse Osmosis (RO) system.
